Dehydration Netting

Rack Liner Netting & Dehydration Trays


Replacement Netting and Plastic Tray for Food Quality Dehydrators
Plastic Jerky Tray Replaces Stainless Steel
Made from BPA-free plastic resin that complies with FDA regulations for food contact.

  • Easy to clean
  • Reusable
  • Easy to handle and fabricate
  • Order full rolls or custom cut-to-size pieces

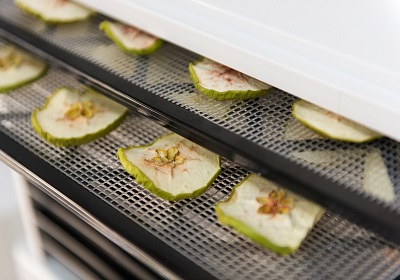

Durable, BPA free, FDA compliant, polypropylene resin netting works as a drying screen, tray, sheet, or rack liner for a variety of food products - especially as a dehydration tray liner for fruits, nuts, meats, and jerky during the dehydrating or drying process and popularly used as Smokehouse Netting. Industrial Nettings poly plastic netting makes for a clean surface that allows air and liquid to circulate freely, while separating cuts and pieces throughout processing. This makes for a perfect drying dehydration tray or drying rack liner. Whether you're dehydrating fruits, nuts, or meats - we have a mesh size and thickness to fit your food processing application. Wherever an open mesh surface, poly liner is needed for air and liquid circulation – Industrial Netting has this perfect solution.

Critical Performance Information

Polypropylene PP

Polyethylene HDPE

302° F

Softening Point Under Load

257° F

363° F

Melt Temperature

266° F

32° F

Glass Transition (becomes brittle)

-104° F

Do NOT Expose To:

  • Non-Polar Solvents (Hydrocarbons such as Pentane & Hexane)
  • Alkaline Builders (Caustic Soda, Caustic Potash, Phosphates, Silicates, Carbonates)

Material Selection

Plastic Netting that can be used as a tray liner for Food applications!

For high temperature, non-stick, surfaces check out our line of Polytetrafluoroethylene (PTFE) plastic netting.

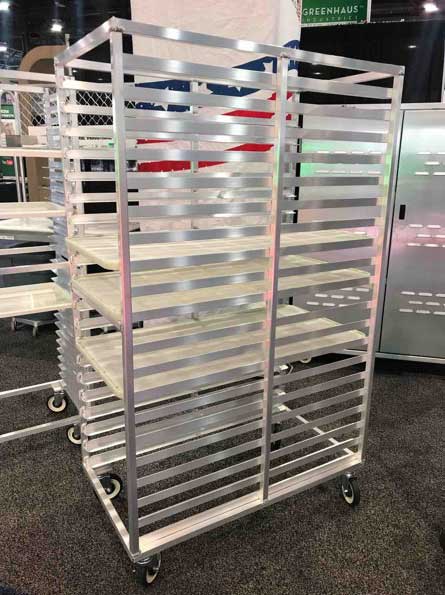

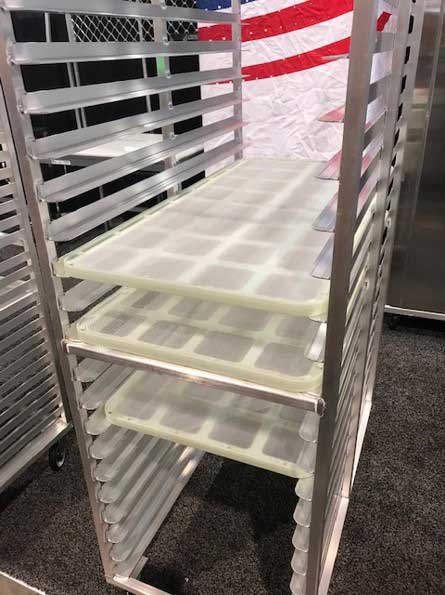

Our Polypropylene (PP) netting is made from resin that complies with FDA regulations for food contact that is BPA free. It is also designed to be used with UL listed dehydrators. In addition to our poly tray, rack liner products we also have an FDA approved injection molded plastic tray. This tray is currently available at 21" wide x 42" long. These poly trays are reusable, easy to clean, lightweight, and less expensive than stainless steel frames.

Industrial Netting can sheet or die cut your order to fit a wide range of chrome or stainless steel shelves, trays, sheets, screens, and racks. Our custom frames have been designed to incorporate an edge tab that allows for easy installation and removal of die cut plastic mesh.

See ALL PTFE, Diamond, and Square, FDA Compliant plastic mesh products used for Dehydration.

+ Color




+ Resin (material)



+ Thickness Range




+ Hole Size Inches Range




+ Open Area Range






XN3019 - 0.030" Square Polypropylene Mesh, 0.036" Thickness

XN3019 - 0.030" Square Polypropylene Mesh, 0.036" Thickness



XN3234 - 0.054" Square Polypropylene Mesh, 0.019" Thickness

XN3234 - 0.054" Square Polypropylene Mesh, 0.019" Thickness



XN1678 - 0.125" Square Polypropylene Mesh, 0.035" Thickness

XN1678 - 0.125" Square Polypropylene Mesh, 0.035" Thickness



XN0260 - 0.203" Square Polypropylene Mesh, 0.059" Thickness

XN0260 - 0.203" Square Polypropylene Mesh, 0.059" Thickness



XY5030 - 0.275" Square Polyethylene Mesh, 0.095" Thickness

XY5030 - 0.275" Square Polyethylene Mesh, 0.095" Thickness



XN5010 - 0.275" Square Polypropylene Mesh, 0.121" Thickness

XN5010 - 0.275" Square Polypropylene Mesh, 0.121" Thickness



XE5010 - 0.275" Square Polypropylene Mesh, 0.121" Thickness

XE5010 - 0.275" Square Polypropylene Mesh, 0.121" Thickness



XN1020 - 1/2" Square Polyethylene Mesh, 0.09" Thickness

XN1020 - 1/2" Square Polyethylene Mesh, 0.09" Thickness



XN3110 - 0.75" Square Polypropylene Mesh, 0.13" Thickness

XN3110 - 0.75" Square Polypropylene Mesh, 0.13" Thickness



XE3110 - 0.75" Square Polypropylene Mesh, 0.13" Thickness

XE3110 - 0.75" Square Polypropylene Mesh, 0.13" Thickness
